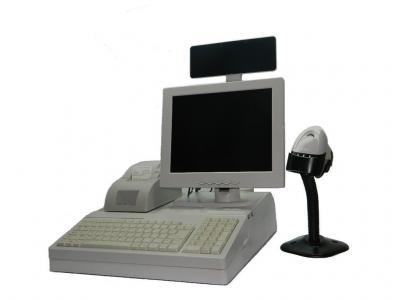

Model HT-2103E
PC-Based POS System
This HT-2103E is a PC-based POS system that has compact structure, which is designed for retail and F&B industry, and very suitable for grocery store, supermarket, convenience store and so on. And for this machine, Hintel is only available for hardware platform solutions, the customers are required to purchase the separate application management system software and OS from the third-party product and service providers.
Descriptions of PC-based POS system:
The HT-2103E is the PC-based POS system for the Retail, Food and Beverage industry, and it is compactly designed for the grocery store, supermarket, and convenience store and so on. This POS machine can be used as terminal station or back office system or both combinations together for different scale retail business. And it supports the operating systems including the Mac OS, MS Windows and Linux, and meets the requirements of all the specific retail business management. In addition, the system also includes the related peripheral devices such as thermal receipt printer, barcode scanner and cash drawer etc. Here are system specifications for this model as follows:
System specifications:
• POS System Motherboard: |
ATX SV-Atom103 |
• CPU: |
Intel Atom D525 1.86GHz |
• Chipset: |
Intel NM10 |
• Hard Disk: |
500GB HDD |
• DIMM memory: |
2GB |
Front/rear panel port:
- 1 x PS/2 Keyboard
- 1 x PS/2 mouse
- 1 x LAN (RJ45) port
- 2 x USB on front panel
- 4 x USB on I/O back panel
- 1 x COM on I/O back panel
- 3 x COM (built-in )
- 1 x LPT port
- 1 x Stereo audio line-in/line-out jack
- 1 x VGA
OS support:
- Mac OS, MS Windows 7/ Windows XP/ Windows 2000 and Linux
POS System Peripheral devices:
- 12.1” color monitor
- Customer pole display
- 58mm thermal receipt printer
- Cash drawer
- Barcode scanner
- Keyboard
- Mouse
Physical characteristics of main POS machine:
• Dimension (w x d x h) |
400x420x110 mm or 15.75x16.54x4.33 in |
• Weight |
5.7 kg/12.57 lb |
For PC-based POS system solutions, Hintel just provide hardware system platform only. And the relevant terminal application software, back office management system, database management system and operating system (OS) are not available at Hintel, and the customers are required to do separate purchase from the third-party product and service providers.
